Stencil (also known as an SMT solder mask or SMT printing stencil) is an essential component in the Surface Mount Technology (SMT) manufacturing process. Using a high-precision stencil ensures that SMD (Surface Mount Device) components are accurately and efficiently mounted onto the circuit board while minimizing printing errors and technical issues. With the help of a stencil, solder paste can be printed precisely onto the PCB surface, enabling faster and easier component alignment and placement.
The PCBA and SMT stencil fabrication service at KZTECH is one of the key solutions that helps optimize the production and assembly process of electronic printed circuit boards (PCB). With many years of experience in the industry and a team of professional technicians, KZTECH is committed to providing high-quality stencil products that meet the strict technical requirements of customers. SMT stencil fabrication services not only help reduce production costs but also improve efficiency and ensure high accuracy when printing solder paste layers onto component pads on PCBs.
PCBA SMT Electronic Circuit Assembly
1. PCBA, SMT Stencil and Their Importance in Electronics Manufacturing
In the field of PCB manufacturing, SMT stencils play a crucial role in the solder paste printing process. A stencil is a thin metal sheet, typically manufactured using laser cutting or chemical etching, designed to precisely define the solder paste locations before components are placed.
Why are SMT stencils important?
Ensure uniform and accurate solder paste printing on each pad
Increase accuracy when mounting SMD components
Reduce soldering defects while improving PCB productivity and quality
Therefore, choosing a high-quality SMT stencil fabrication service is the first step to ensuring the efficiency of the entire SMT production process.

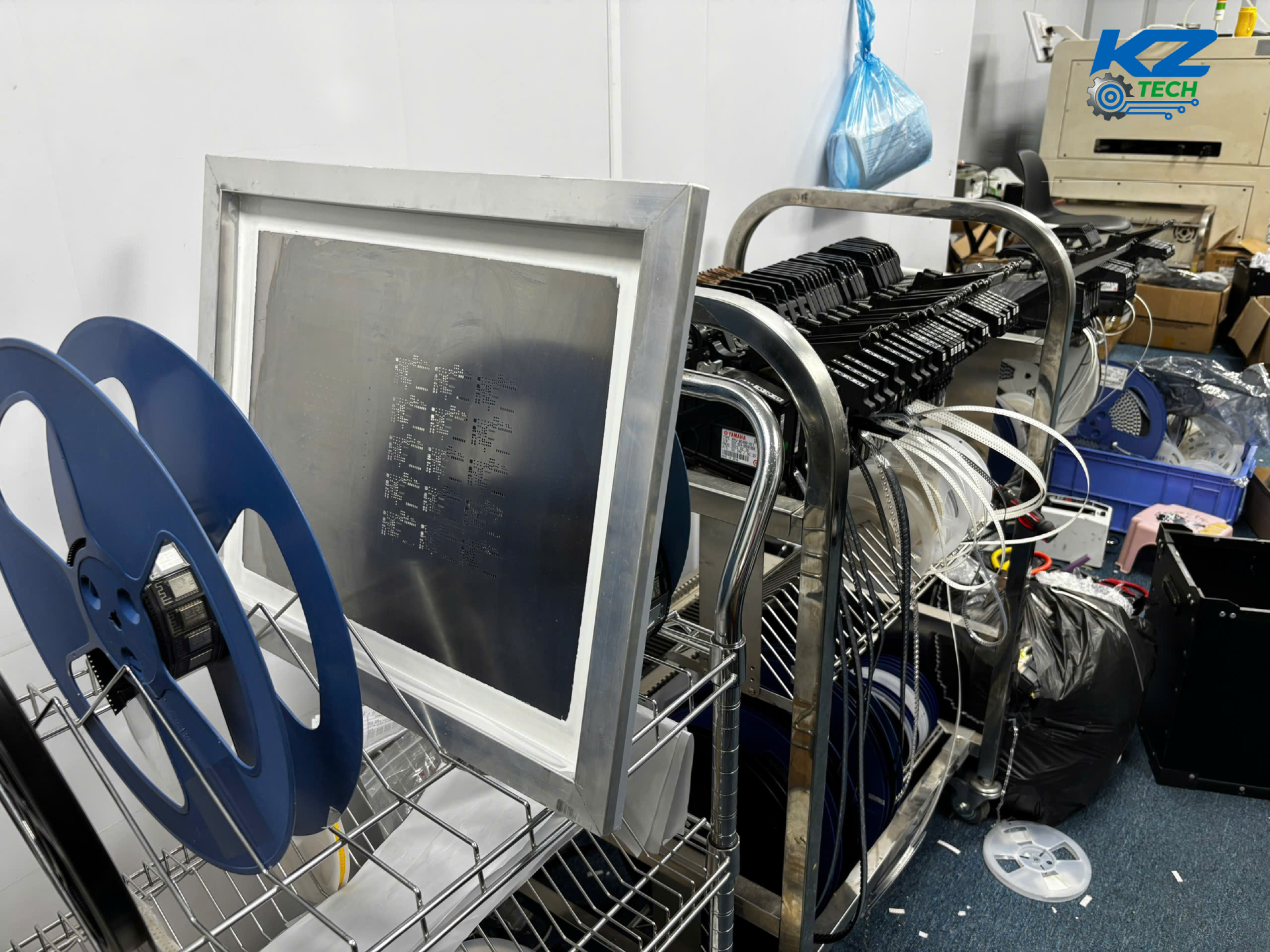

Fast and urgent SMT stencil fabrication High-quality SMT stencil manufacturing workshop
2. What is PCBA and SMT Stencil Fabrication Service?
PCBA (Printed Circuit Board Assembly) refers to the process of soldering electronic components (SMT mounting) onto a printed circuit board (PCB) to create a finished electronic product used in various devices. At KZ TECH, we provide a complete service including PCB ordering, component sourcing, and assembly according to customer requirements.

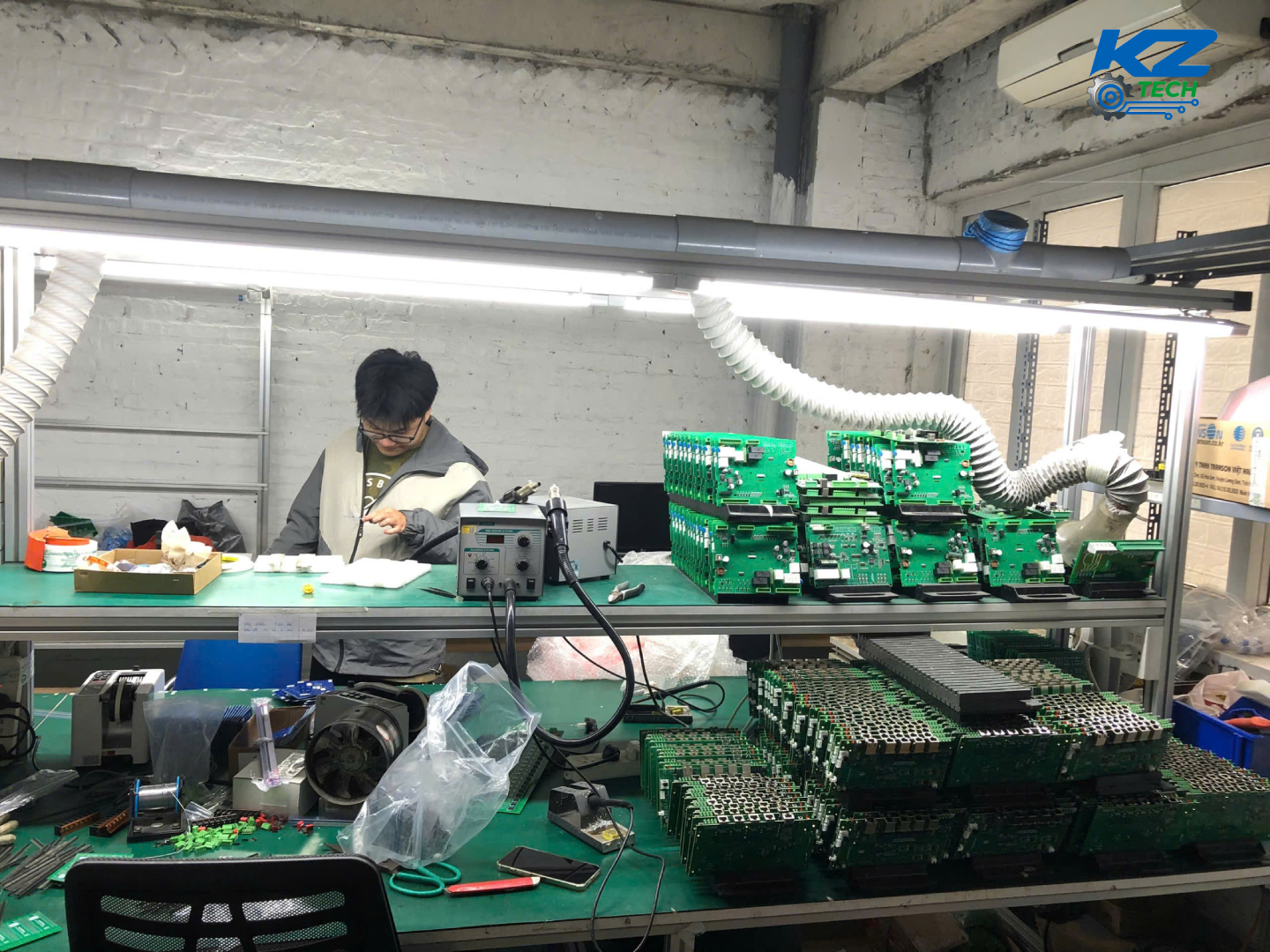

Fast and reliable PCBA SMT assembly
We offer a full-package service from circuit design, PCB manufacturing, component procurement, assembly, testing, and final product delivery to customers. In addition, we provide flexible manufacturing options: customers may supply their own components and only require PCB fabrication, or provide their design files for assembly. Orders at KZ TECH are flexible—from small prototype quantities to large-scale mass production.
SMT stencil fabrication service involves designing and cutting stencils based on the customer's Gerber file for use in SMT solder paste printing lines. Depending on technical requirements, stencils can be manufactured using various technologies.
Common stencil types:
Laser Cut Stencil: highly precise, sharp edges, and the most widely used today
Framed Stencil: suitable for mass production
Frameless Stencil: cost-effective, ideal for prototype production
Step Stencil: varying thickness in specific areas
Electroformed Stencil: used for ultra-fine components requiring high precision
3. PCBA and SMT Stencil Fabrication Process at KZTECH
We provide professional PCBA and SMT stencil fabrication services, supporting customers from technical consultation to fast nationwide delivery.
Process includes:
Receiving Gerber files from customers
Consulting on stencil thickness, material, and appropriate stencil type
Designing and optimizing stencil layout
Laser cutting with modern equipment
Quality inspection and packaging
Delivery within 24–48 hours
Advantages of KZTECH PCBA & SMT stencil services:
High precision with advanced laser cutting technology
Technical support from experienced engineers
Competitive pricing – quotation within 1 hour
Nationwide delivery – urgent order support
Flexible order quantities from small to large
PCBA & SMT Fabrication Pricing
PCBA and SMT fabrication costs do not have a fixed price because they depend on several technical factors. Below are the main factors affecting PCBA manufacturing costs:
1. PCBA Quantity
Prototype or sample production usually costs more per unit. Mass production with larger quantities reduces the cost per board because SMT machine setup costs remain fixed regardless of quantity.
2. Number and Type of Components per PCB
The more components placed on a PCB, the higher the cost. A higher number of SMT pads or smaller components may also increase the price.
3. PCB Type
Single-layer and double-layer PCBs are cheaper than 4-layer, 6-layer, 8-layer, or higher multilayer boards.
4. Manufacturing Technology
Costs depend on whether SMT assembly is single-side or double-side and whether through-hole soldering is required. Double-sided SMT assembly typically costs more than single-sided.
5. Delivery Time
If customers require urgent PCBA or SMT fabrication within 24–48 hours, the cost will be higher than standard production schedules. Standard manufacturing time is usually 3–5 days, depending on the order.
6. Design Files
If customers do not have design files, KZ TECH can provide full design services, which will add additional cost compared to cases where customers already provide complete and standard design files.
Contact for PCBA & SMT Fabrication
To receive a detailed quotation for PCBA and SMT fabrication services, please contact the KZ TECH hotline: 0867 933 188 for consultation and the fastest, most comprehensive quotation.
